Dewitts Radiator and Fan Combo C6 Corvette Auto and C6 Z06 DEW-4139105A

Dewitts Radiator and Fan Combo C6 Corvette Auto and C6 Z06 DEW-4139105A

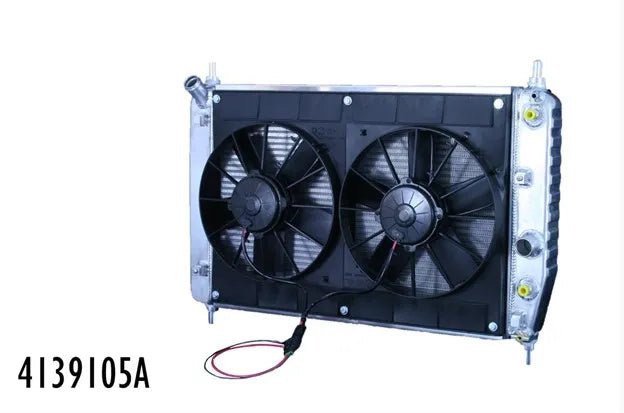

DeWitts combo DEW-4139105A combines a full-height direct-fit radiator with a pair of SPAL 11" electric fans. The two-row core doubles the capacity of the factory single-row radiator. It is designed for C6 Corvettes with an automatic transmission and for the C6 Z06.

What's included

• DeWitts direct-fit radiator
• SPAL dual 11" electric fans (2800 CFM)

Key specifications

• Two rows of 1" tubes, twice the capacity of the factory single-row core
• Press-formed end tanks TIG welded in place of the factory plastic tanks
• Direct-fit design
• Part number: DEW-4139105A
• Factory-style quick-connect fittings for the oil connections
• Single transmission oil cooler provision
• Application: all C6 Z06 and C6 automatic cars

Before you order

The 2012 special Z07 car is excluded. If you are adding a supercharger, the shortened-core version (DEW-4139125A) is listed separately. Send us your year, model and current setup and we will confirm fitment before you order.

See also: engine overheating: causes and fixes · Corvette parts by generation · c6 corvette supercharger kits · all ECS supercharger kits and parts by platform.

Shipping and returns

Shipping is a flat $80.00 per order to US addresses, and returns are free within 15 days of delivery. Questions before you order? Ask a parts specialist.
