ECS C6 BASE LS3 NOVI 1500 Kit 6-Rib Belt BLACK Finish

ECS C6 BASE LS3 NOVI 1500 Kit 6-Rib Belt BLACK Finish

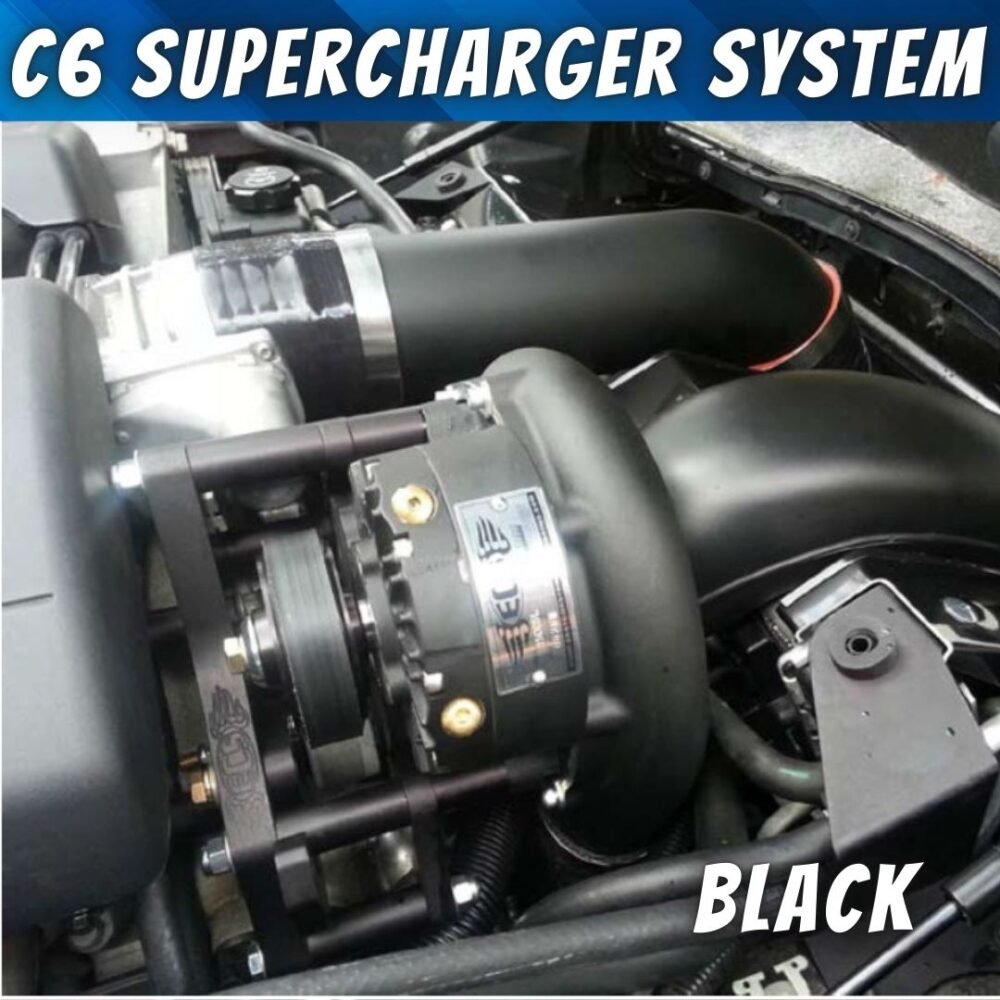

East Coast Supercharging's complete Novi 1500 system for the 2008-2013 6.2L LS3 C6 Corvette, in this configuration with a 6-rib belt drive and black finish. The kit includes a heavy-duty tensioner and steel bearing idlers to carry the added belt load, plus an ECS-designed C6 intercooler and a fuel upgrade. It is for base LS3 owners who want a complete bolt-on system with room to grow.

What's included

• Belt-driven Paxton NOVI centrifugal supercharger (head unit per the option you select)
• Billet aluminum mounting bracket assembly with idler, drive belt and hardware
• Heavy-duty belt tensioner and fixed idlers on double-walled ball bearings
• ECS C6 intercooler and 6061 aluminum ducting
• Fuel upgrade: ECS Fuel Pump Booster plus 60# injectors
• Crank pin kit and a new GM crank bolt
• PCV oil separator and ECS valve cover breather
• Reusable high-flow air filter
• Air inlet restrictor plate
• Heat-resistant silicone sleeves with stainless T-bolt clamps on the inlet and discharge joints
• Genuine TiAL Q or Qr blow-off valve
• New NGK TR-6 spark plugs

Key specifications

• Engine: 2008-2013 6.2L LS3
• Belt drive: 6-rib
• Head unit choices: Novi 1500-SL Black, Novi 1500-SL Polished or Novi 2200R Black
• Novi 1500: self-contained oiling and quiet operation
• Approximately 200hp added on an otherwise stock car
• ECS figures: 500-600 rwhp on otherwise stock C6s, and more than 800 rwhp on a properly set up engine
• Intercooler core: 17 x 3.5 x 8 in with a 3 inch inlet and 4 inch outlet, proven past 1200 hp
• Brackets machined in-house by ECS from 3/4 in billet aluminum, with steel idlers and a slide idler for belt wrap
• Bracket set also accepts the Novi 1500-SL, 2200-HD, 2200-R and 2200-X, with ECS quoting 1,300+ whp depending on application
• Fits under the stock hood and works with factory OBD II engine management
• Designed around the factory cooling system, Z51 and Z06 included, with provision kept for factory or aftermarket oil coolers

Before you order

If you choose an oil-fed 2200-series head unit, plan for a -4AN feed line and a 1/2" or -8AN drain line. Send us your year, model and current setup and we will confirm fitment before you order.
