ECS C6 NOVI 1500 Kit LS2 BLACK

ECS C6 NOVI 1500 Kit LS2 BLACK

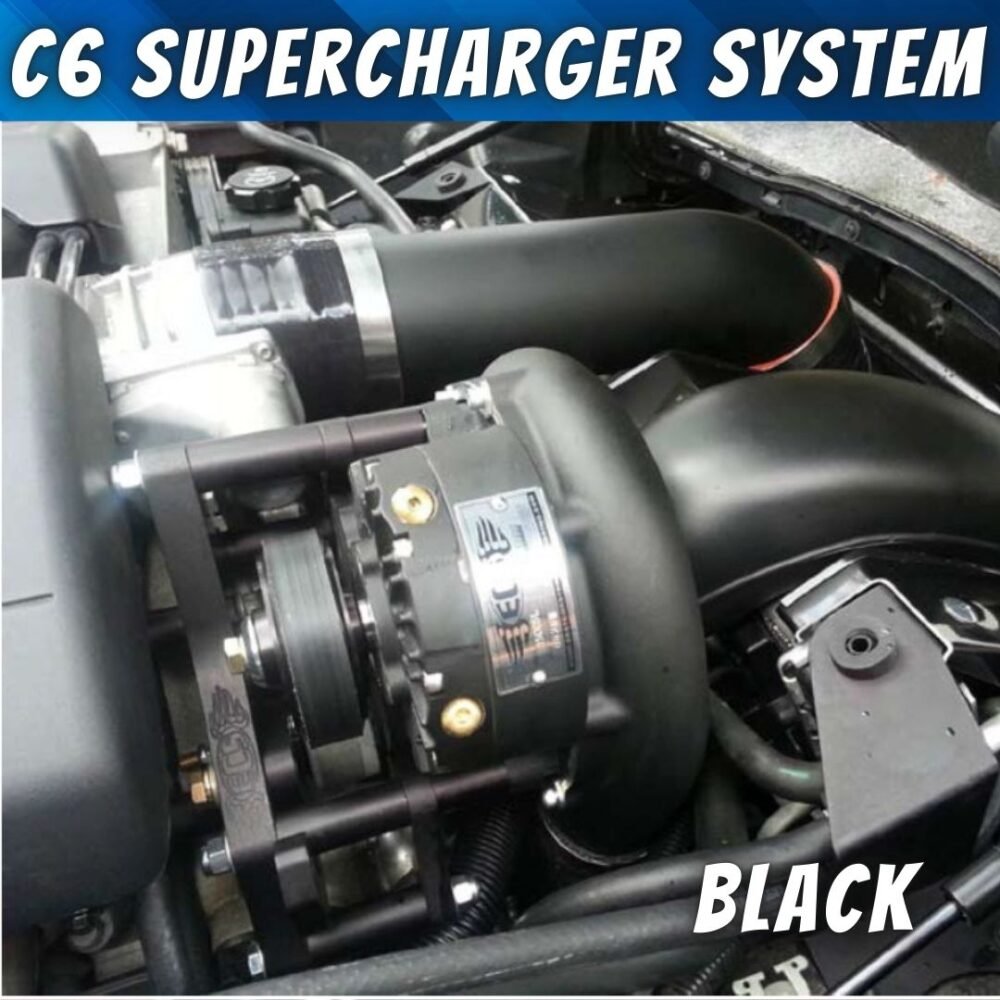

This black ECS Novi 1500 kit is built for the 2005-2007 C6 Corvette with the 6.0L LS2. It pairs a Paxton head unit with ECS billet brackets, a heavy-duty belt tensioner and a C6-specific intercooler. It suits LS2 owners who want a complete system that also leaves room for larger head units later.

What's included

• Belt-driven Paxton NOVI centrifugal supercharger (head unit per the option you select)
• Billet aluminum mounting bracket assembly with idler, drive belt and hardware
• Heavy-duty belt tensioner and fixed idlers on double-walled ball bearings
• ECS C6 intercooler and 6061 aluminum ducting
• Fuel upgrade: ECS Fuel Pump Booster plus 60# injectors
• Crank pin kit and a new GM crank bolt
• PCV oil separator and ECS valve cover breather
• Reusable high-flow air filter
• Air inlet restrictor plate
• Heat-resistant silicone sleeves with stainless T-bolt clamps on the inlet and discharge joints
• Genuine TiAL Q or Qr blow-off valve
• New NGK TR-6 spark plugs

Key specifications

• Engine: 2005-2007 6.0L LS2
• Head unit choices: Novi 1500-SL Black, Novi 1500-SL Polished or Novi 2200R Black
• Novi 1500: self-contained oiling and quiet operation
• Approximately 200hp added on an otherwise stock car
• ECS figures: 500-600 rwhp on otherwise stock C6s, and more than 800 rwhp on a properly set up engine
• Intercooler core: 17 x 3.5 x 8 in with a 3 inch inlet and 4 inch outlet, proven past 1200 hp
• Brackets machined in-house by ECS from 3/4 in billet aluminum, with steel idlers and a slide idler for belt wrap
• Bracket set also accepts the Novi 1500-SL, 2200-HD, 2200-R and 2200-X, with ECS quoting 1,300+ whp depending on application
• Fits under the stock hood and works with factory OBD II engine management
• Designed around the factory cooling system, Z51 and Z06 included, with provision kept for factory or aftermarket oil coolers

Before you order

If you choose an oil-fed 2200-series head unit, plan for a -4AN feed line and a 1/2" or -8AN drain line. Send us your year, model and current setup and we will confirm fitment before you order.

See also: Paxton Novi 1200 vs 1500 vs 2200 · supercharger kit prices · how long a supercharger lasts · is a supercharger worth it? · supercharger maintenance · Corvette parts by generation · c6 corvette supercharger kits · all ECS supercharger kits and parts by platform.

Shipping and returns

Shipping is a flat $80.00 per order to US addresses, and returns are free within 15 days of delivery. Questions before you order? Ask a parts specialist.
