ECS/Paxton NOVI 2200X Supercharger Head Units

ECS/Paxton NOVI 2200X Supercharger Head Units

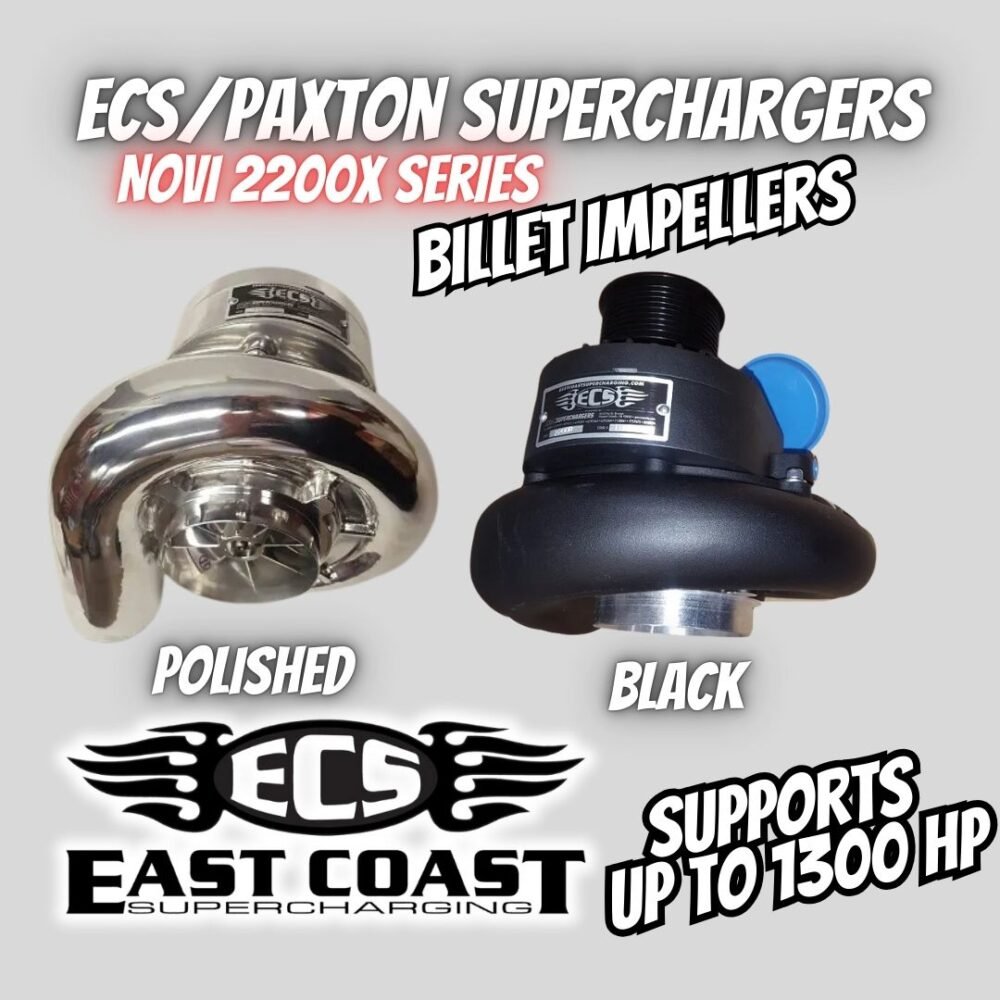

The NOVI 2200X is Paxton's billet-case, billet-impeller head unit, offered through the East Coast Supercharging exclusive line for Corvettes (CCW) and Camaros (CW). It is intended for heavily modified engines that need very high airflow and boost. Most existing Paxton and Vortech mounting brackets will accept it.

Key specifications

• 5-axis machined billet impeller with a high-diffusion housing, developed in Vortech's SAE-J1723-compliant test cell
• D-port volute
• Heavy-duty (H/D) build uses high-speed ceramic hybrid ball bearings and suits cog pulley / Gilmer style drives
• Corvette CCW Black, billet case: PAX-1016186-B
• Corvette CCW Satin, billet case and impeller: PAX-1016186
• Corvette CCW Polished, billet case and impeller: PAX-1016186-P
• Camaro CW Black: PAX-1016189B-B
• Camaro CW Polished: PAX-1016189B-P
• Listed weight: 20 lbs; listed dimensions: 12 x 12 x 12 in

Before you order

Every 2200X needs a Vortech Racing Bypass Valve or a larger valve to handle its discharge flow. It fits most Paxton and Vortech brackets, but check your bracket, pulley and drive style first, and choose the oil-fed or non-oil-fed version to suit your system. Send us your year, model and current setup and we will confirm fitment before you order.

See also: all ECS supercharger kits and parts by platform.
